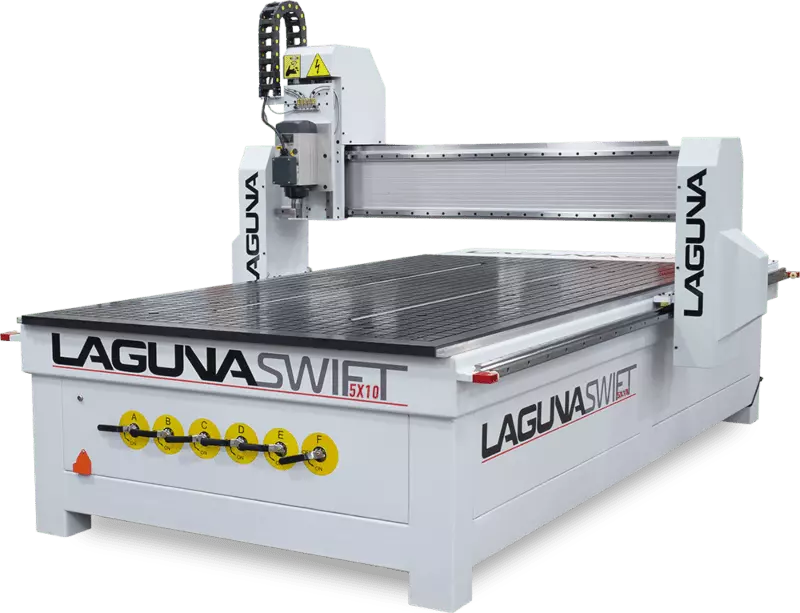

Laguna Swift Vacuum CNC Router 5' x 10'

The Laguna Swift Vacuum adds a phenolic vacuum table with 4 or 6 zones for fast, reliable hold-down on sheet goods and nested parts.

A water-cooled 3 HP spindle runs 6,000–24,000 RPM, with the same rigid steel frame, helical rack drives, and handheld controller as the Swift Standard.

• 3 HP water-cooled electrospindle (ER-20), 6,000–24,000 RPM

• Phenolic vacuum table: 4-zone (4x4) / 6-zone (4x8, 5x10)

• Handheld controller

• Double helical rack drives on X/Y; ball screw Z

• 7.5" gantry clearance

• Work area: 5' x 10'

• Vacuum zones: 4 (4x4) or 6 (4x8/5x10)

• Gantry clearance: 7.5"

• Spindle: 3 HP water-cooled, ER-20 collet

• Shipping weight: 2250 lb

• Shipping dimensions (L x W x H): 144" x 90" x 58"

• Swift Vacuum CNC router (5' x 10')

• Handheld controller

• Owner’s manual

Download the Owner’s Manual
