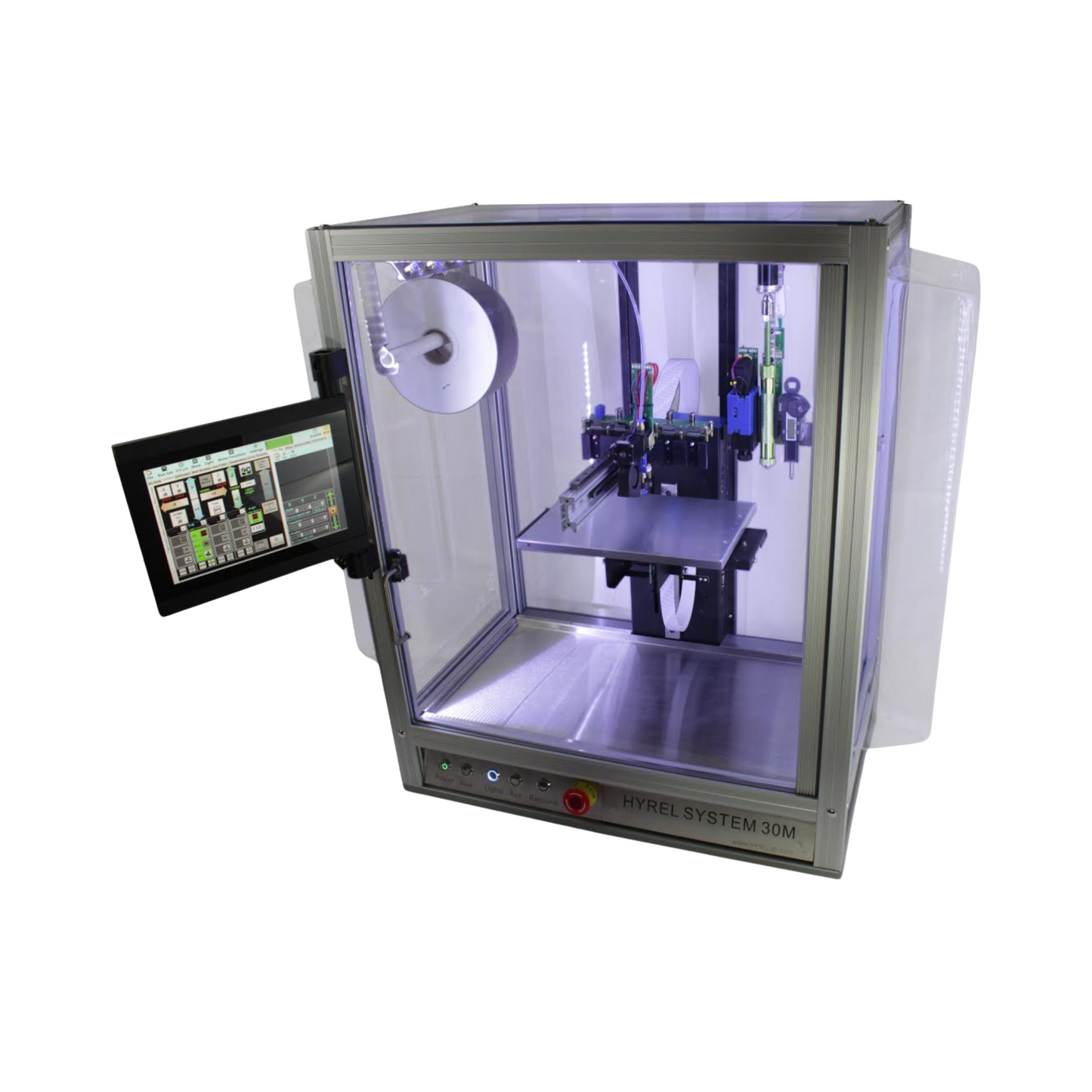

Hyrel 3D System 30M

Hyrel 3D System 30M

$5,800.00 USD
$5,800.00 USD
Description

The System 30M, is designed for a wide range of laboratory needs. Designed for most thermoplastics, it is also able to print liquids, gels, and clays from ambient, cooled, or heated temperatures, with or without UV curing. The 30M has a 34x16" base and sits on any flat surface.

Features
  • Motion (X/Y/Z): Bed / Head / Bed
  • Exterior Dimensions (X/Y/Z): 34 x 16 x 32 in (87 x 41 x 82 cm)
  • Power Requirements:
    – 110-120 VAC / 60 Hz, 15 A
    – 208-240 VAC (single phase) / 50–60 Hz, 8 A
  • Build Volume (X/Y/Z): 200 x 200 x 200 mm (standard)
  • Max Payload (Bed/Yoke): 5 lbs (2.2 kg) each
  • Bed Temperatures: Ambient to 90°C
  • Chamber Temperatures: Ambient to 50°C
  • Printing Speeds: Up to 30 mm/sec (1800 mm/min) recommended
  • Positional Resolution (X/Y/Z): 0.005 mm / 0.005 mm / 0.001 mm
  • Positional Accuracy (X/Y/Z): 0.05 mm / 0.05 mm / 0.01 mm
  • Positional Repeatability (X/Y/Z): 0.05 mm / 0.05 mm / 0.01 mm
  • Output for Bioplots (X/Y/Z): 0.1 mm lines with 0.2 mm spacing
  • Tool Positions (Standard/Max): Four
  • Filament Heads: Supports 1.75 mm and 2.85 mm filaments (up to 260°C or 450°C)
  • Reservoir Heads: 1 cc to 300 cc, ambient, heated (to 270°C), or chilled (to -5°C)
  • Mixing/Blending Heads: Active or passive blending; fixed or programmable ratios
  • Spindle Tool Heads: 12 VDC, single-phase only
  • Laser Tool Heads: 6 W, 450 nm diode laser
  • UV Light Pens: 1 W in 365, 405, or 450 nm
  • Extra Axis Options: None
  • Pick-and-Place Compatible: No
  • USB Microscope Compatible: Yes
More Information
  • Designation: Benchtop, Enclosed, Heating Optional
  • Target Users: Laboratory Research
  • Placement Mechanism: Benchtop Model, Knee Design
  • Shipping Dimensions (X/Y/Z): 32 x 16 x 24 in, 100 lbs (81 x 56 x 61 cm, 45 kg)
  • Approximate Weight: 90 pounds
  • Exterior Dimensions (X/Y/Z): 34 x 16 x 32 in (87 x 41 x 82 cm)
  • Power Requirements: 8 A / 208–240 VAC (single phase), 50–60 Hz
  • Build Volume (X/Y/Z): 8 x 8 x 8 in (200 x 200 x 200 mm)
  • Bed Temperatures: 85–90°C
  • Chamber Temperatures: +10°C above ambient, up to 55°C with additional heating
  • Bed RTDs: 10K
  • Max Bed Payload: 2.2 lbs (1 kg)
  • Max Yoke Payload: 2.2 lbs (1 kg)
  • X/Y Printing Speeds: Up to 30 mm/sec
  • Enclosure: Polycarbonate (optionally heated to 55°C)
  • Motion Control: 0.9° Stepping Motor with Closed-Loop Feedback (as of Apr 2022)
  • Positional Resolution (X/Y/Z in µm): 5 / 5 / 1
  • Positional Accuracy (X/Y/Z in µm): 50 / 50 / 10
  • Positional Repeatability (X/Y/Z in µm): 50 / 50 / 10
  • Precision Output for Bioplots:
    – 100 µm lines
    – 200 µm spacing
  • Preset Z Layer Height: 25 µm layers
  • Tool Positions (Standard/Max): Four
  • Reservoir Ambient: All EMO, SDS, DSD, and SMH Heads
  • Reservoir Temp Ctrl: All VOL, KRA, TAM, RSD, and HSD Heads
  • Filament: All FH2-* and HT3-* Heads
  • Low Power Laser Options: 6W, 450nm GaN Diode and 2W, 450nm GaN Diode
  • High Power Laser Options: Not Applicable
  • Spindle Tool Compatibility: Standard Three-Phase
  • Max Axes: Max of X, Y, Z
  • Extra Axes: None
  • Pick & Place Compatibility: No
  • Other Options: Quiet Storm Fan, Microscope, UV Pens

Hyrel 3D is a U.S.-based manufacturer of modular, high-performance 3D printers and tool heads. Known for innovation, precision, and reliability, Hyrel serves a global clientele across research institutions, universities, and advanced manufacturing environments. Their printers are engineered to support multi-material printing with plug-and-play modularity, robust construction, and unmatched versatility in material compatibility.

All Hyrel machine purchases require a free 1-hour remote training session before ordering. This ensures you understand how to safely and effectively use the system with your intended materials and tool heads.

Training is conducted via Zoom with Davo (Hyrel Support) and covers:

  • Hardware and software basics

  • Proper setup and operation

  • Maintenance and best practices

  • Open Q&A for specific applications

To schedule your session, please request a quote. We'll coordinate the training with Hyrel and complete your order afterward.

Lead time is typically three weeks, but if there is a special configuration or head, it may be longer.

  • Domestic Shipping:
    We ship to all 48 continental U.S. states and Washington, D.C.

  • Alaska, Hawaii & U.S. Territories:
    These are treated as international shipments for shipping purposes.

  • International Shipping:
    Any shipment outside the 48 U.S. states and D.C. is considered international.

  • INCO Terms - EX WORKS:
    For international orders, ownership transfers at our facility. Buyers are responsible for all import/export duties, taxes (e.g., VAT, GST, HST), and customs clearance.

  • Shipping Insurance:
    Automatically included on all domestic U.S. shipments.

  • Carriers We Use:
    We ship via USPS, UPS, FedEx, and DHL. If you have a preferred carrier and active account, we’re happy to accommodate it upon request.

  • Restricted Destinations:
    We do not ship to countries under U.S. embargo or sanction.

  • Import Compliance:
    It is the buyer’s responsibility to verify that their country allows the import of our products.

  • Signature on Delivery:
    We highly recommend requesting signature-required delivery. While optional, we are not responsible for lost packages if this is declined.

  • Core Coverage (1 Year):
    All mechanical components and core electronics are covered under a 1-year warranty.

  • Exclusions:

    • Installing or flashing third-party firmware will void all warranty coverage.

    • Tampering with core electronics also voids the warranty.

    • Operating the printer in dirty or abrasive environments (e.g., saw mills, sandblasting areas) will void the warranty.

  • Heaters, Hot Ends & Heated Beds (90 Days):
    Covered for 90 days. If a clear manufacturing defect is identified, repairs will be provided at no charge.

  • Lasers (90 Days):
    Covered for 90 days from the original shipment date.

  • Extended Warranties:
    Available upon request — contact us for options.

  • Depot Repair Policy:
    All warranty repairs are handled through depot repair. Customers are responsible only for shipping costs to and from the service center.

  • Maintenance Requirements:
    Warranty coverage requires that the equipment is:

    • Properly cleaned and maintained

    • Operated within intended environmental parameters (e.g., appropriate temperature, humidity, static control, and cleanliness)

  • Customer Satisfaction First:
    Our goal is to ensure you get the right product — even if that ultimately isn’t ours.

  • Return Window:
    Returns are accepted within 30 days of shipment.

  • Condition Requirement:
    Returned printers must be in excellent condition with all parts intact and functioning.

  • Restocking Fee:
    Up to 75% of the purchase price may be refunded. Refunds may be reduced based on the condition of the returned unit.

  • Damage Review:
    Any damage to the unit will be reviewed and may lower the refund amount.

  • Original Purchaser Only:
    Refunds will only be issued to the original customer, using the original payment method (e.g., PayPal, check).

  • Shipping Responsibility:
    Customers are responsible for all return shipping, handling fees, taxes, and duties.
