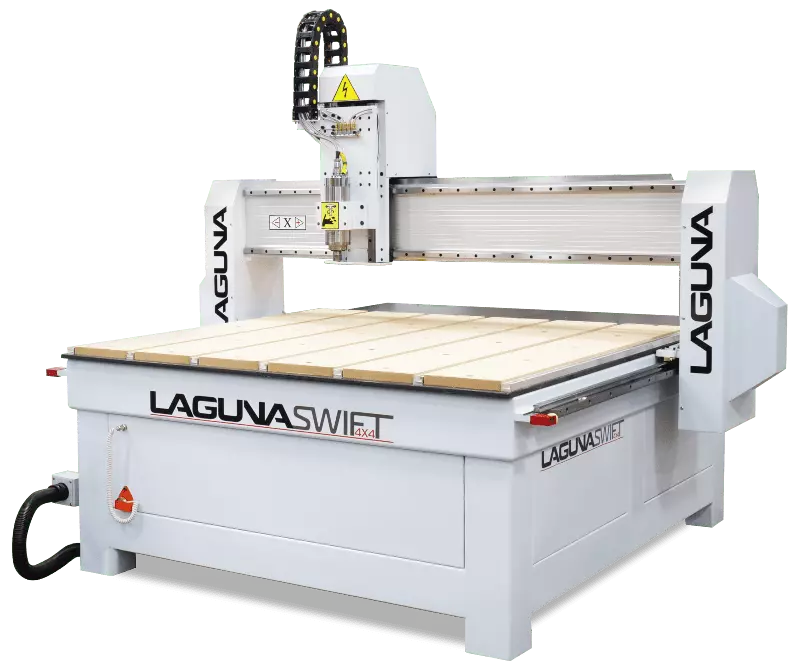

Laguna Swift CNC Router 4' x 4'

The Laguna Swift is a budget-friendly CNC router built on a rigid one-piece steel frame with helical rack-and-pinion drives on X/Y and a ball screw on Z.

A 3 HP liquid-cooled spindle runs 6,000–24,000 RPM for wood, plastics, foam, aluminum and composites, while the handheld DSP controller keeps operation simple and reliable.

• 3 HP liquid-cooled electrospindle, 6,000–24,000 RPM

• Handheld DSP control system

• T-slot table (standard)

• Helical rack & pinion X/Y; ball screw Z

• Heavy-duty one-piece steel frame

• Work area: 4' x 4'

• Gantry clearance: 7.5"

• Motion: Helical rack & pinion (X/Y), ball screw (Z)

• Controller: Handheld DSP

• Shipping weight: 1500 lb

• Shipping dimensions (L x W x H): 80" x 76" x 55"

• Swift CNC router (4' x 4')

• Handheld DSP controller

• Owner’s manual

Download the Owner’s Manual
