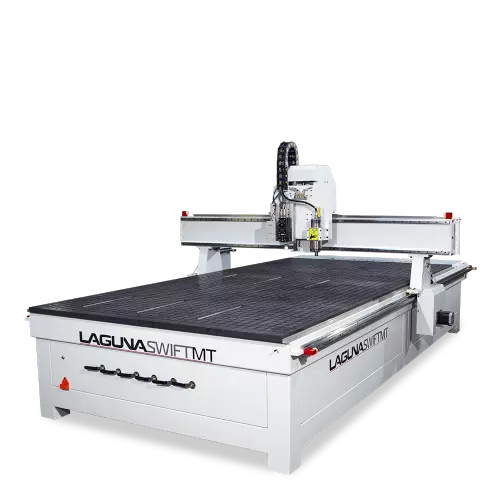

Laguna Swift MT CNC Router 5' x 10'

The Laguna Swift MT multi-tool adds knife cutting and vision registration to the proven Swift platform for fast, accurate processing of soft materials and printed sheets.

A 3 HP liquid-cooled spindle handles routing while tangential and oscillating knife options expand capability. Vision registration finds fiducials and aligns toolpaths for perfect cutouts.

• 3 HP liquid-cooled industrial spindle

• Vision registration for printed sheets (optional)

• Tangential and oscillating knife options

• 4–6 zone phenolic vacuum table

• Helical rack & pinion X/Y; ball screw Z

• 7" gantry clearance

• Work area: 5' x 10'

• Controller: Handheld DSP

• Vacuum: 4–6 zone phenolic table

• Optional units: Vision system, tangential knife, oscillating knife, creasing wheel

• Machine footprint (W x L x H): 69" x 160" x 78"

• Swift MT CNC router (5' x 10')

• Handheld controller

• Owner’s manual
